Easy installation
Low consumption

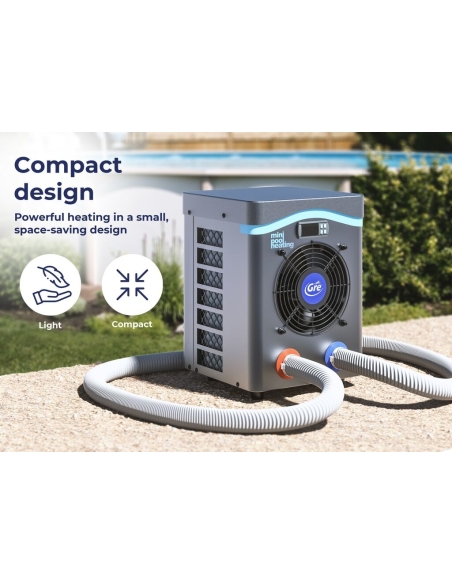

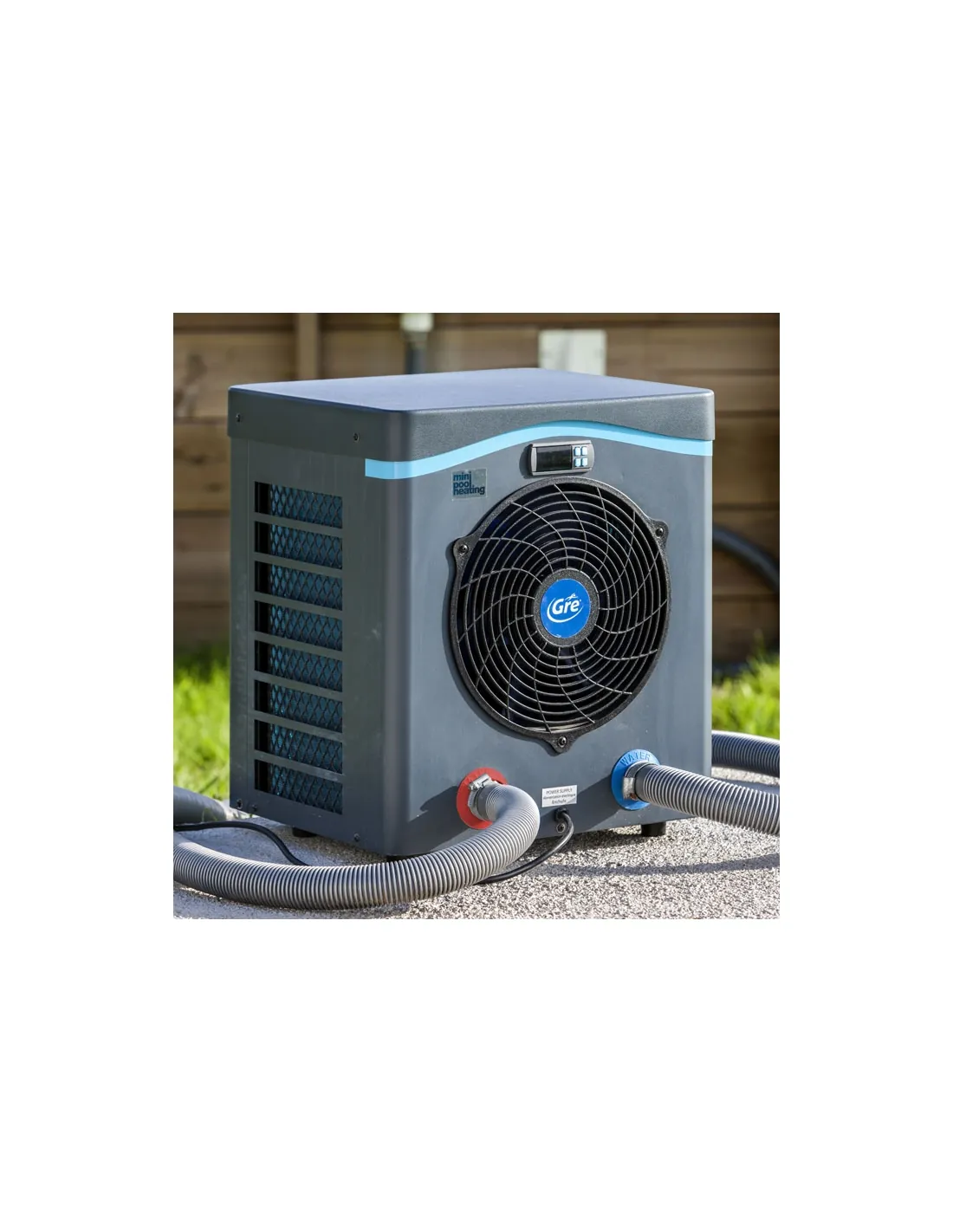

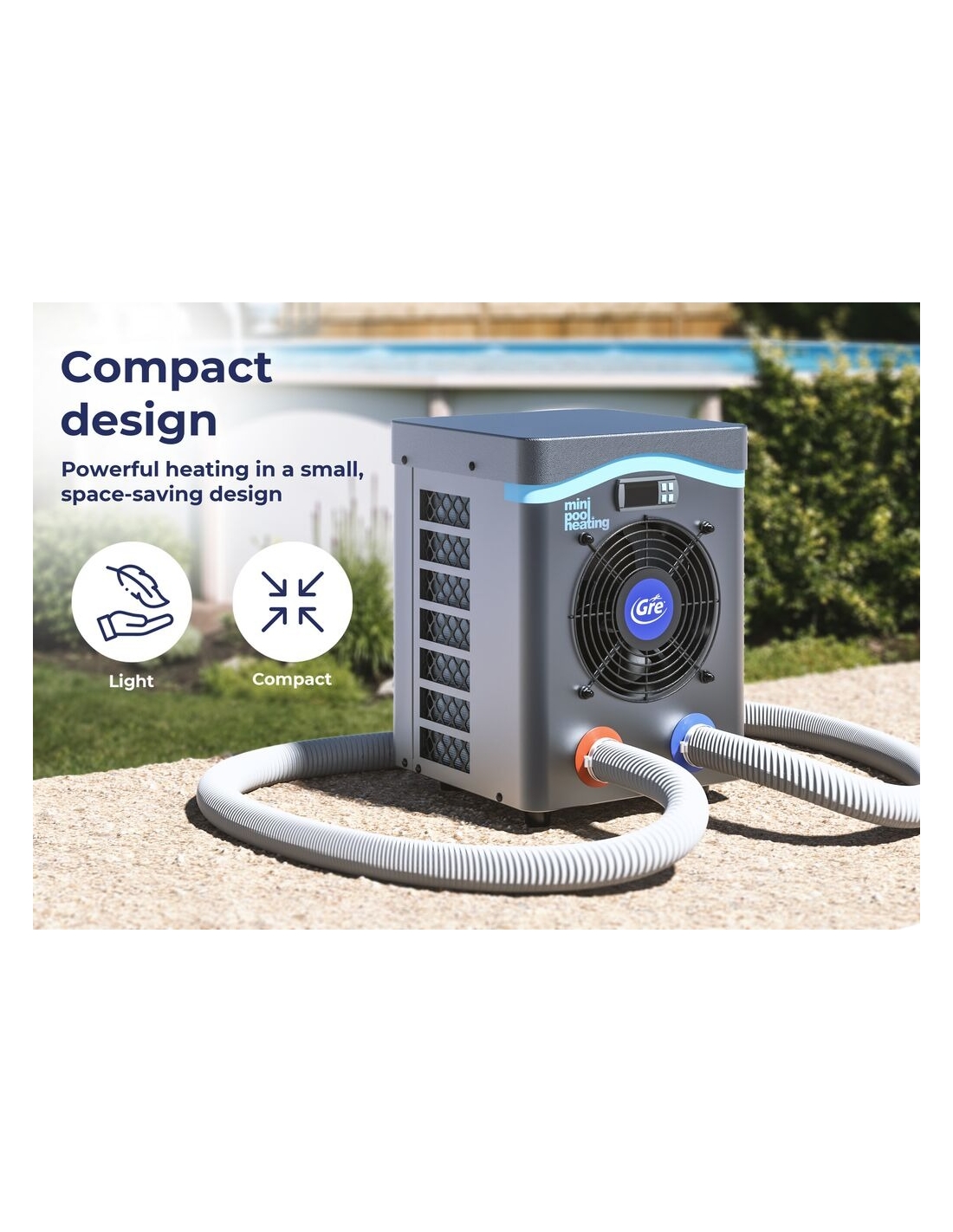

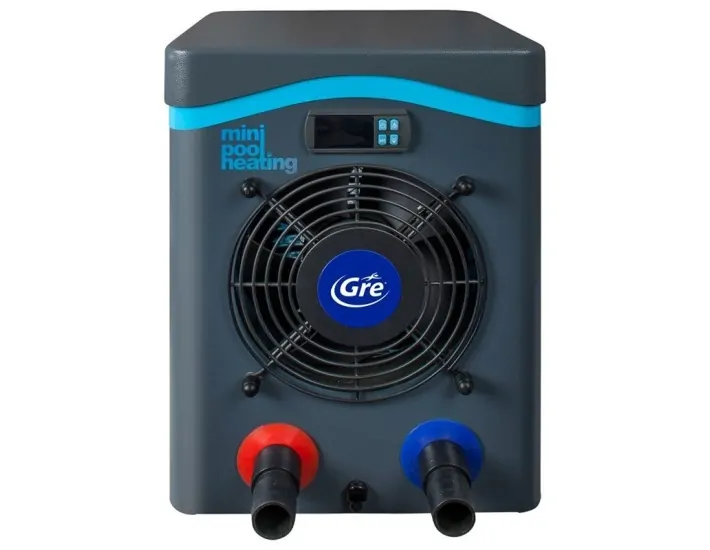

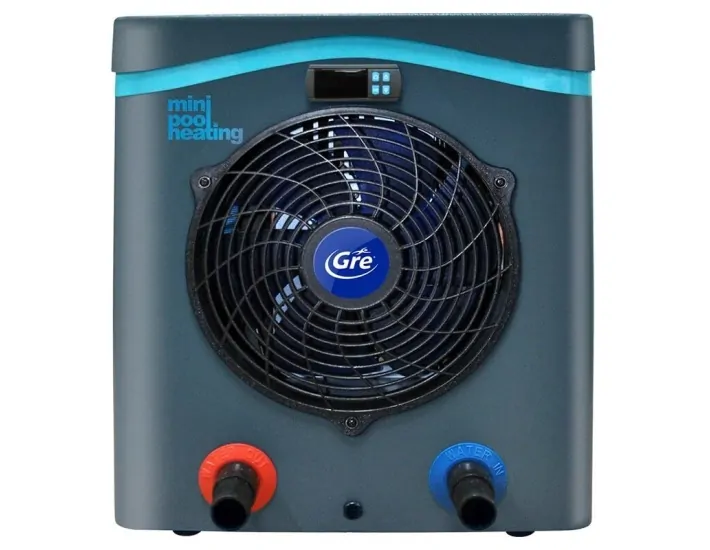

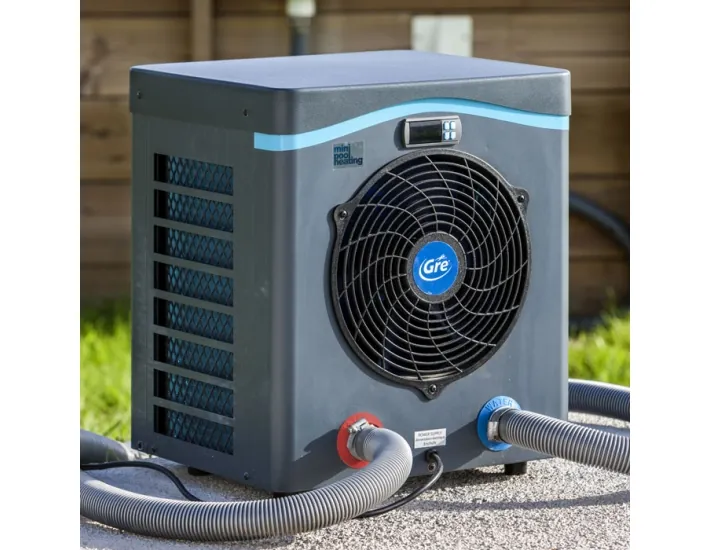

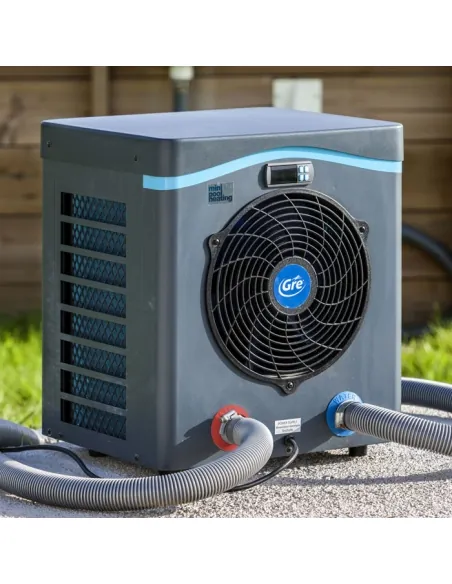

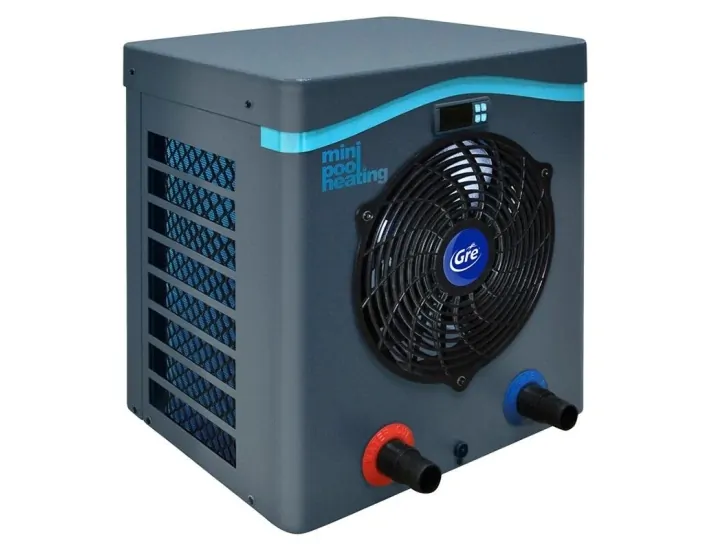

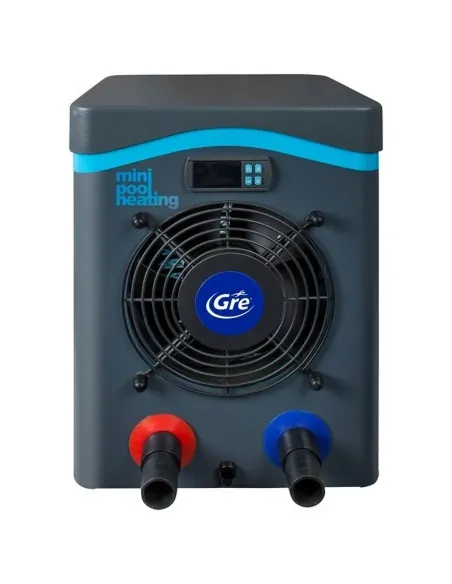

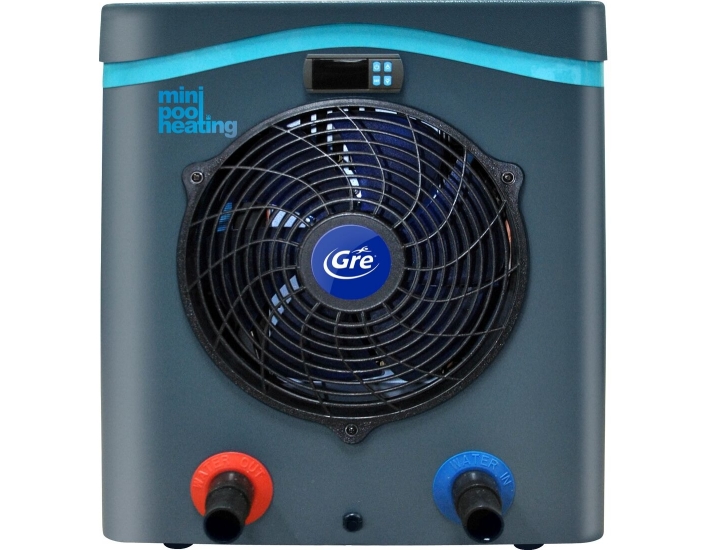

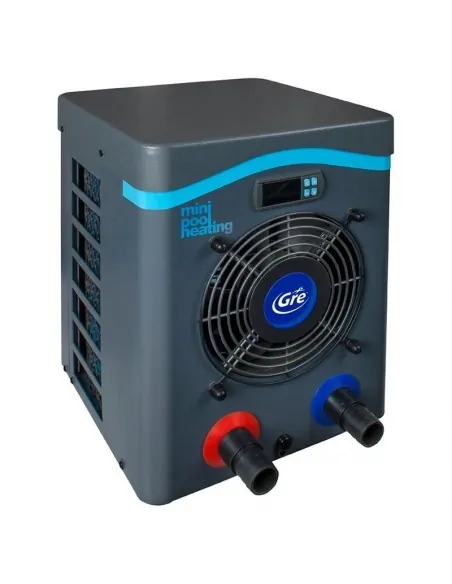

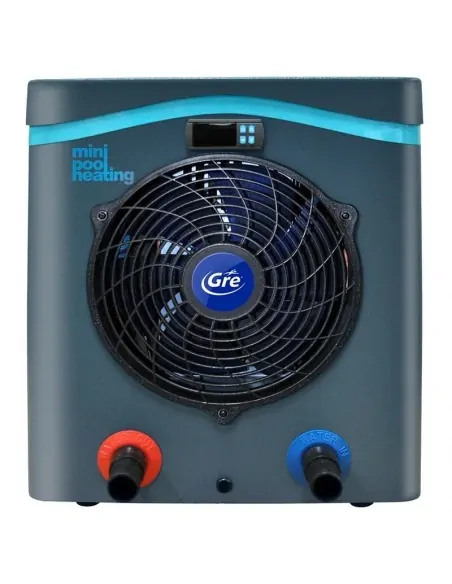

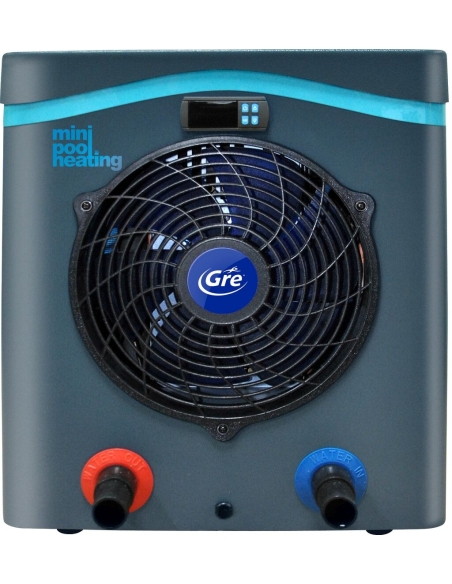

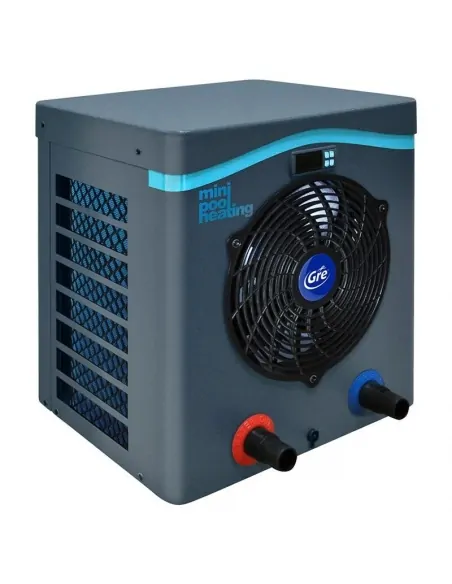

Heatpump of the brand Gre, specially designed to heat the water of above ground pools.
Easy installation: connections 32 / 38 mm and without bypass.
High energy efficiency to heat the water with minimum power consumption.
Available in 3 models to suit pools up to 40 m³.
Mini heat pumps are the new models of heat pumps available in the swimming pool market. These heat pumps are very easy to install and do not need previous and specific installation of a by-pass.

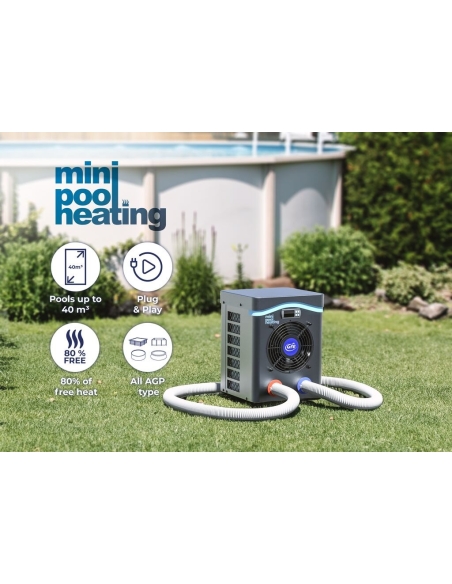

It is a Plug&Play product that is placed in the same circuit as the pool filtration.
They are economical and very efficient pumps.
The range of GRE mini heat pumps is composed of two models for pools up to 20 m3 and 30 m3.

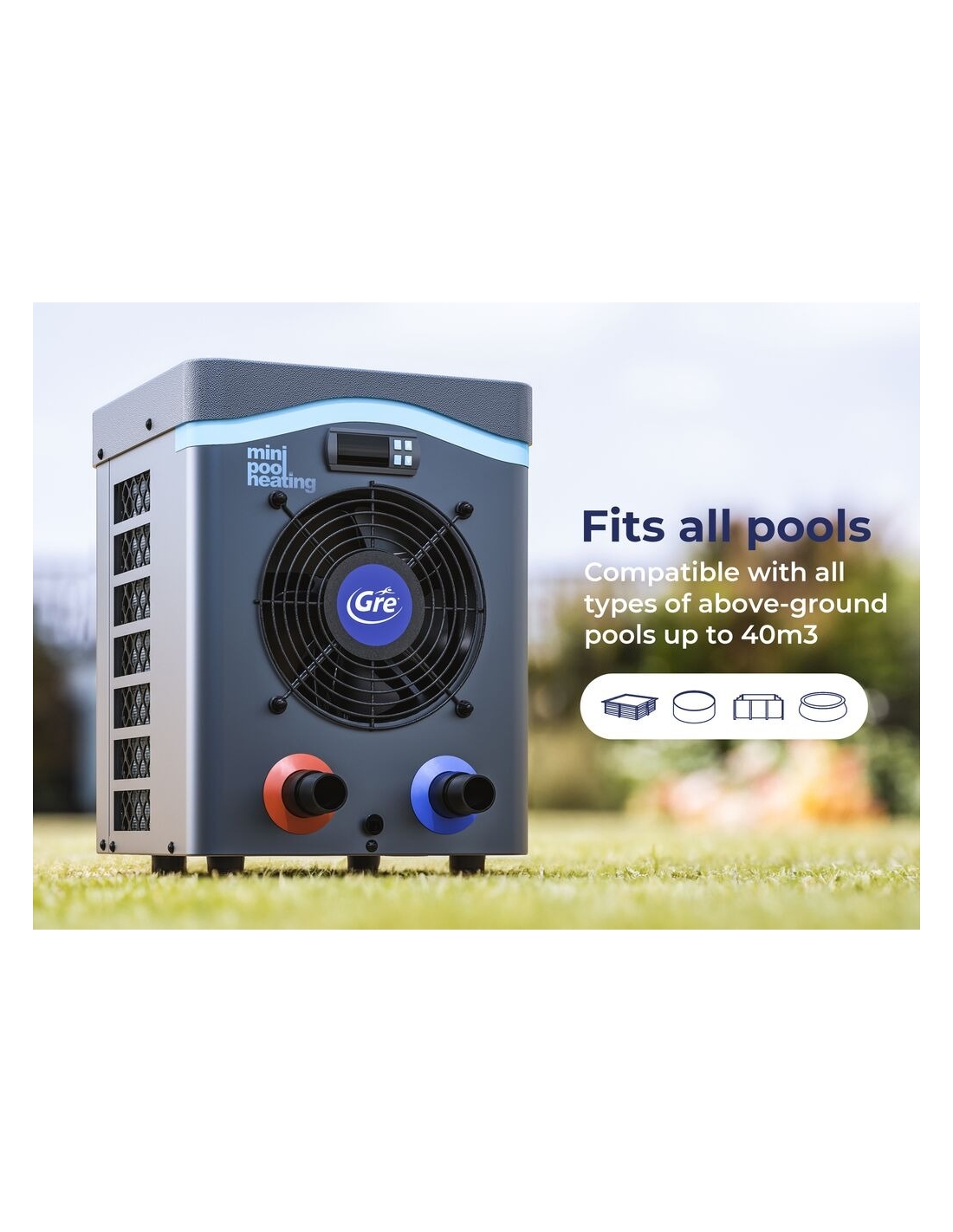

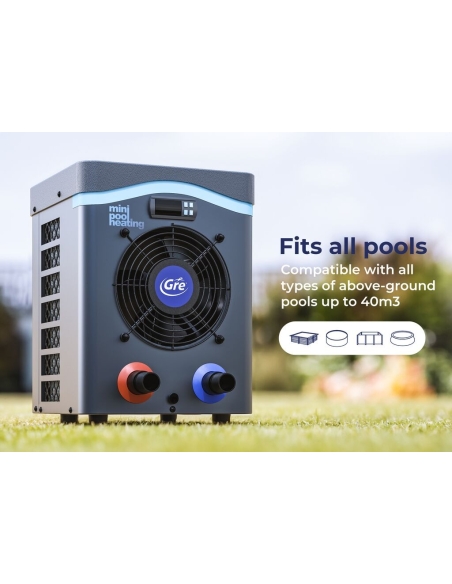

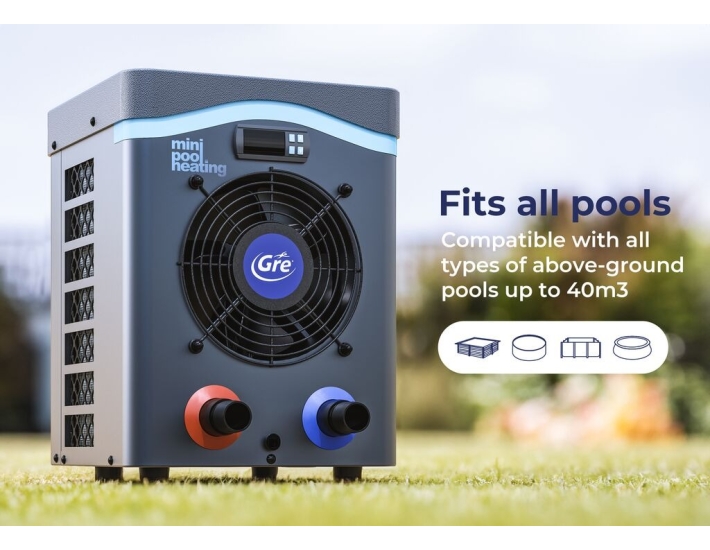

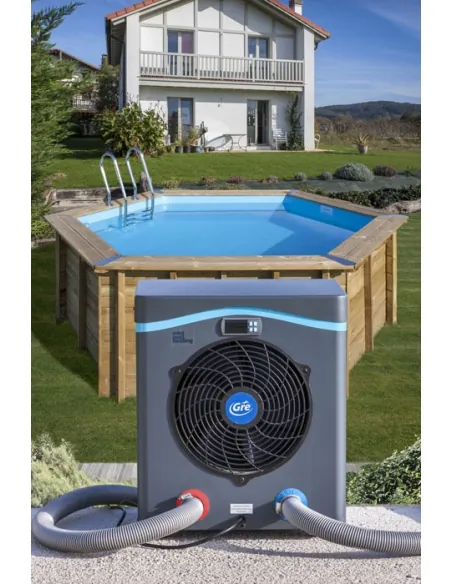

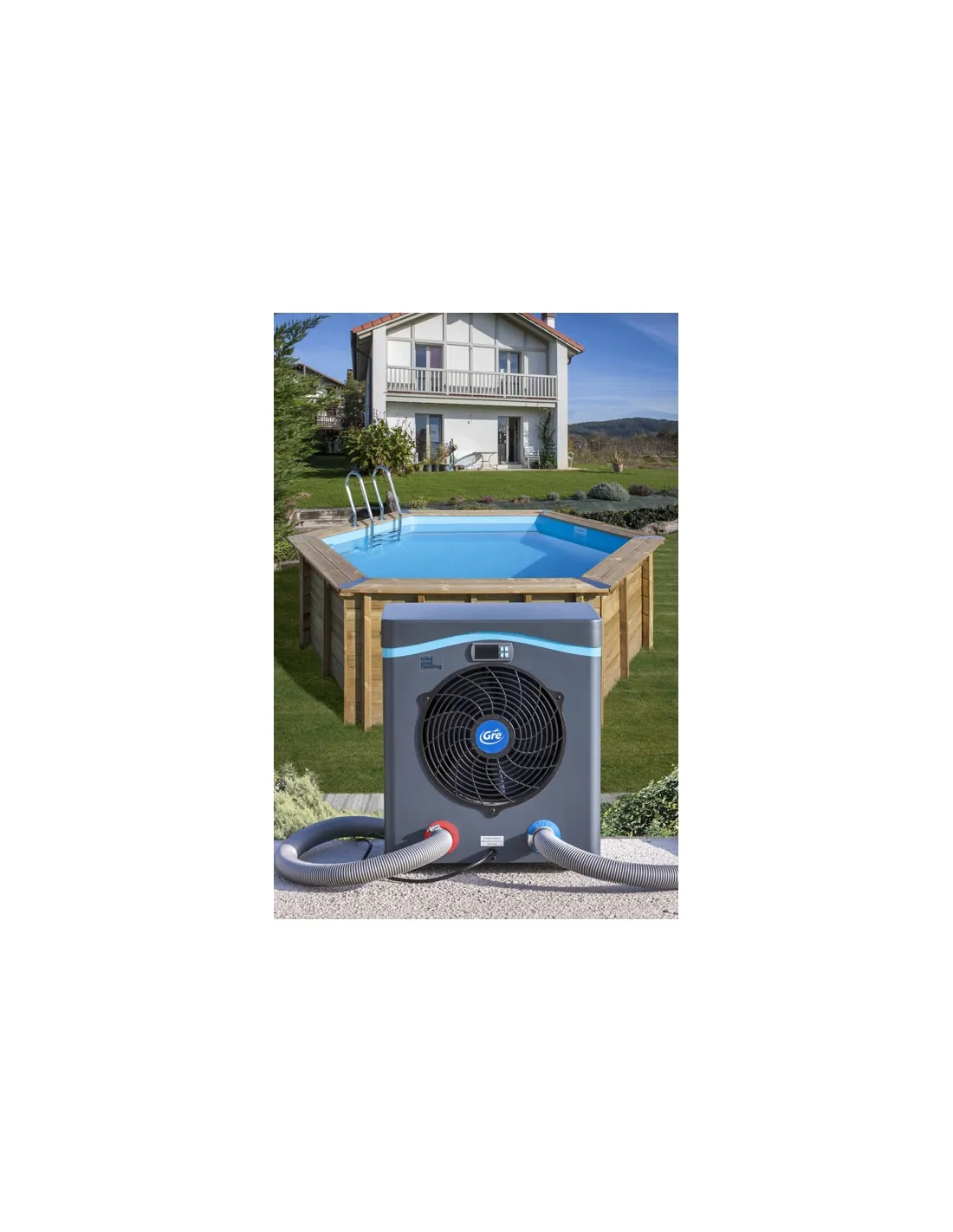

They can be installed in any type of pool: wood, steel, composite, inflatable or tubular, and are suitable for small and medium size pools.
Mini heat pump of the brand Gre for the heating of above ground pools with small volumes of water (up to 40 m³ depending on the model).
Allows to extend the swimming season and to use the pool for a longer period of time.

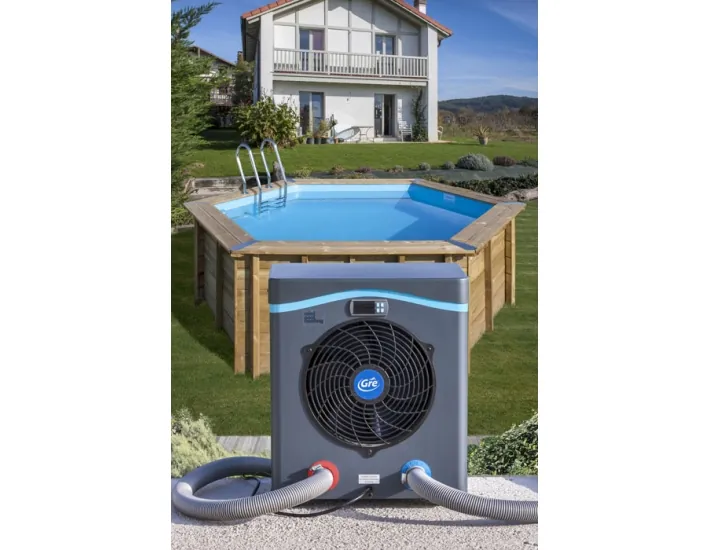

Simple and quick installation in the pool filtration circuit (no bypass required).
32 and 38 mm connections.

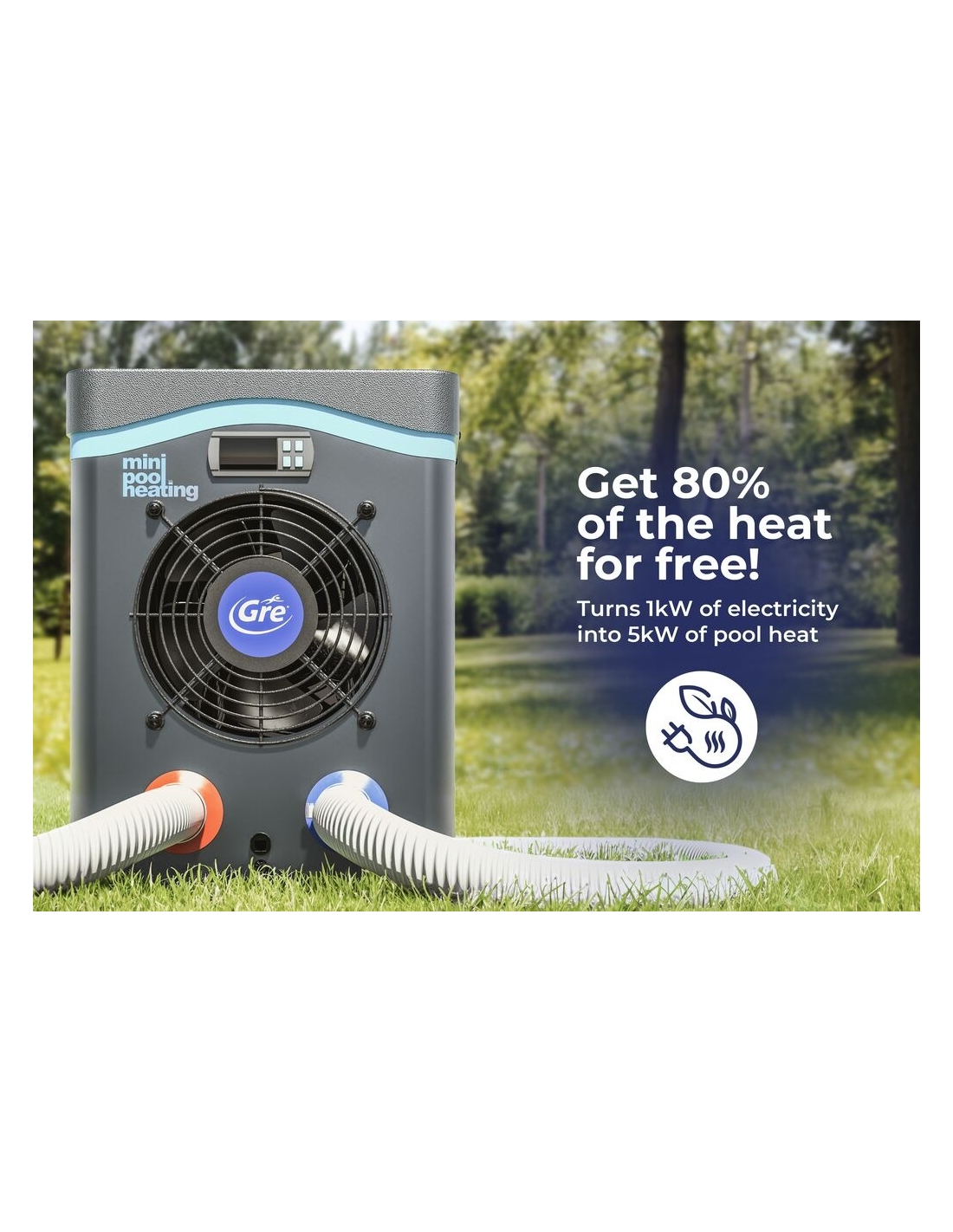

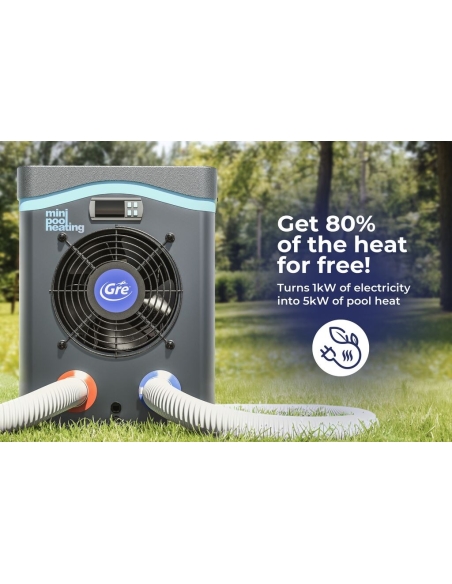

Energy efficiency. The heat pump is the most efficient method for heating a swimming pool.

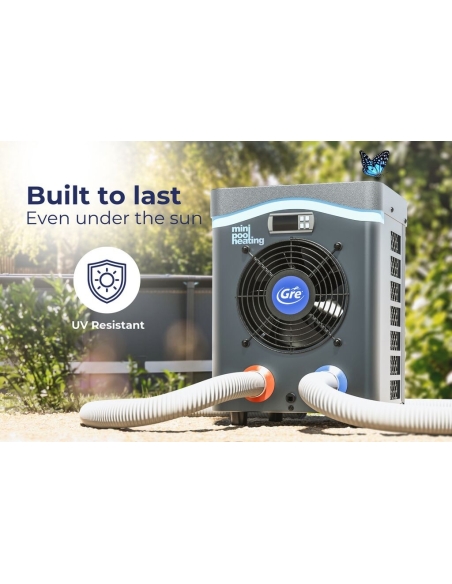

Designed for outdoor installation in a ventilated area.
For optimum energy efficiency, Poolaria recommends installing the heat pump together with an isothermal (bubble) cover.
| Models | HPM20 | HPM30 | HPM40 |
| Min/max temperature |
+12°C / +42°C
|
||
| Air capacity 28ºC / water 28ºC, Humidity 80% | |||
| Heating capacity (kW) | 2,5 | 4,2 | 5,5 |
| Power consumption (kW) | 0,59 | 1,0 | 1,31 |
| COP (coefficient of performance) | 4,2 | 4,2 | 4,2 |
| Air capacity 15ºC / water 26ºC, Humidity 70% | |||
| Heating capacity (kW) | 1,9 | 3,2 | 4,2 |
| Power consumption (kW) | 0,56 | 0,91 | 1,2 |
| COP (coefficient of performance) | 3,4 | 3,5 | 3,5 |
| Technical Data | |||
| Voltage (V) |
220-240V~50Hz
|
||
| Rated current (A) | 2,6 | 4,4 | 5,8 |
| Fuse current (A) | 7,5 | 13 | 16 |
| Recommended pool volume (m³, air 28ºC) | |||
| Recommended pool volume (m³, air 15ºC) | |||
| Recommended minimum water flow (m³/h) | 2 | 2 | 2,5-3,2 |
| Water pressure (Kpa) | 15 | 15 | 15 |
| Condenser |
Titanium in PVC
|
||
| Water connection (mm) |
32 - 38 mm
|
||
| Fan speed (rpm) | 2500 | 1100 | 1100 |
| Noise level (10 m) dB(A) | 48 | 46 | 46 |
| Noise level (1 m) dB(A) | 57 | 55 | 55 |
| Refrigerant R32 (g) | 150 | 290 | 450 |
| Dimensions and weight | |||
| Net weight (kg) | 18 | 26 | 26 |
| Gross weight (kg) | 19 | 28,5 | 28,5 |
| Net dimensions (mm) | 310 x 363,5 x 375 | 434 x 432,5 x 460 | 434 x 432,5 x 460 |
| Packing dimension (mm) | 365 x 440 x 440 | 485 x 510 x 530 | 485 x 510 x 530 |
This product comes in different variations. Please check the table to find the one that best suits your needs for Heat pump Gre Mini for aboveground pools.
At Piscinarium, we are here to help. If you have any doubts, contact us via online chat, email, WhatsApp, or phone. We will try to get back to you as soon as possible.
Please note that during high season, we might take a bit longer than we would like. We apologize in advance; in these cases, reaching out in writing is best so we can get back to you as soon as we can.
| Reference | Model / Specification |
|---|---|
HPM20
|
HPM20 - Up to 20 m3 — Without installation |
HPM30
|
HPM30 - Up to 30 m3 — Without installation |
HPM40
|
HPM40 - Up to 40 m3 — Without installation |
