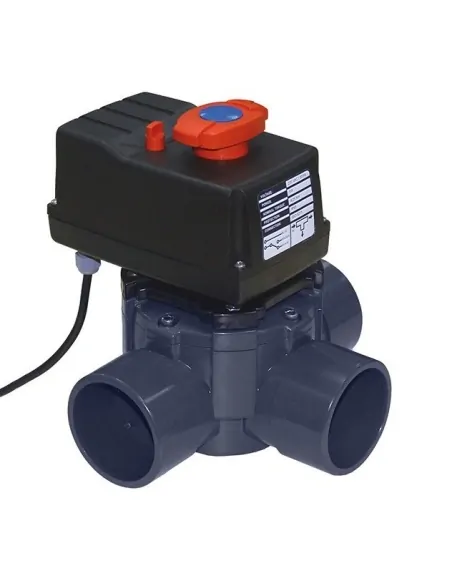

3-Way PVC Distribution Valve (Automatic)
3-Way PVC Distribution Valve (Automatic)

3-Way PVC Distribution Valve (Automatic)

41863
€256.00

3-way distribution valve in PVC-U with rotary gate for change of flow.

Can be used in circuits where the working pressure does not exceed 6 bar (90 psi).

Automatic version, available with 230 VAC or 24 VAC electric actuator.

Available in 2 sizes: 50 - 63 and 63 - 75.

Model



3-way distribution valve with a gate that closes one or none of the outlets to allow the flow between the remaining ones.

Valve specially designed for application in swimming pools, spas or other water distribution applications, has a distribution system designed to facilitate the optimal regulation of the flow to each outlet with great ease of use.

Valve in PVC-U and PPO, actuator in PP and POM.

Maximum working pressure: 6 bar

Internal/external connection glued D50/D63 or D63/D75.

Automatic operation by electric actuator.

Technical characteristics of the electric actuator:

Nominal output torque = 4,25 Nm

Power = 5W

90º turning time = 12,5 s

Degree of protection = IP65

Fixing according to ISO 5211 ø50 F0.5

230 VAC / 50 Hz or 24 VAC / 60 Hz

8435099271376

Find your perfect match

This product comes in different variations. Please check the table to find the one that best suits your needs for 3-Way PVC Distribution Valve (Automatic).

At Piscinarium, we are here to help. If you have any doubts, contact us via online chat, email, WhatsApp, or phone. We will try to get back to you as soon as possible.

Please note that during high season, we might take a bit longer than we would like. We apologize in advance; in these cases, reaching out in writing is best so we can get back to you as soon as we can.

Reference Model / Specification
59956 90º 230 VAC Ø50-63
59955 90º 230 VAC Ø50-63
43730 90º 24 VAC Ø63-75
41864 90º 24 VAC Ø63-75
59960 180º 24 VAC Ø63-75
45866 180º 24 VAC Ø50-63
59959 180º 230 VAC Ø63-75
41863 180º 230 VAC Ø50-63

Cepex is a leader in the fluid handling market. It has many articles and accessories made of PVC (pipes, elbows, tees, fittings, ball valves, ...) as well as other products such as butterfly valves, ... Cepexu has an experience of over 30 years and has become a leading European manufacturers of plastic valves and fittings. Enter Piscinarium and buy everything you may need for the conduction of fluids in the pool.
