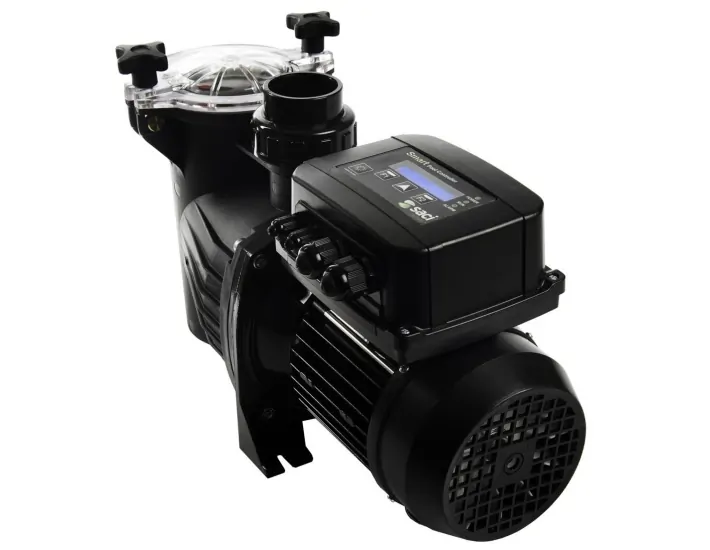

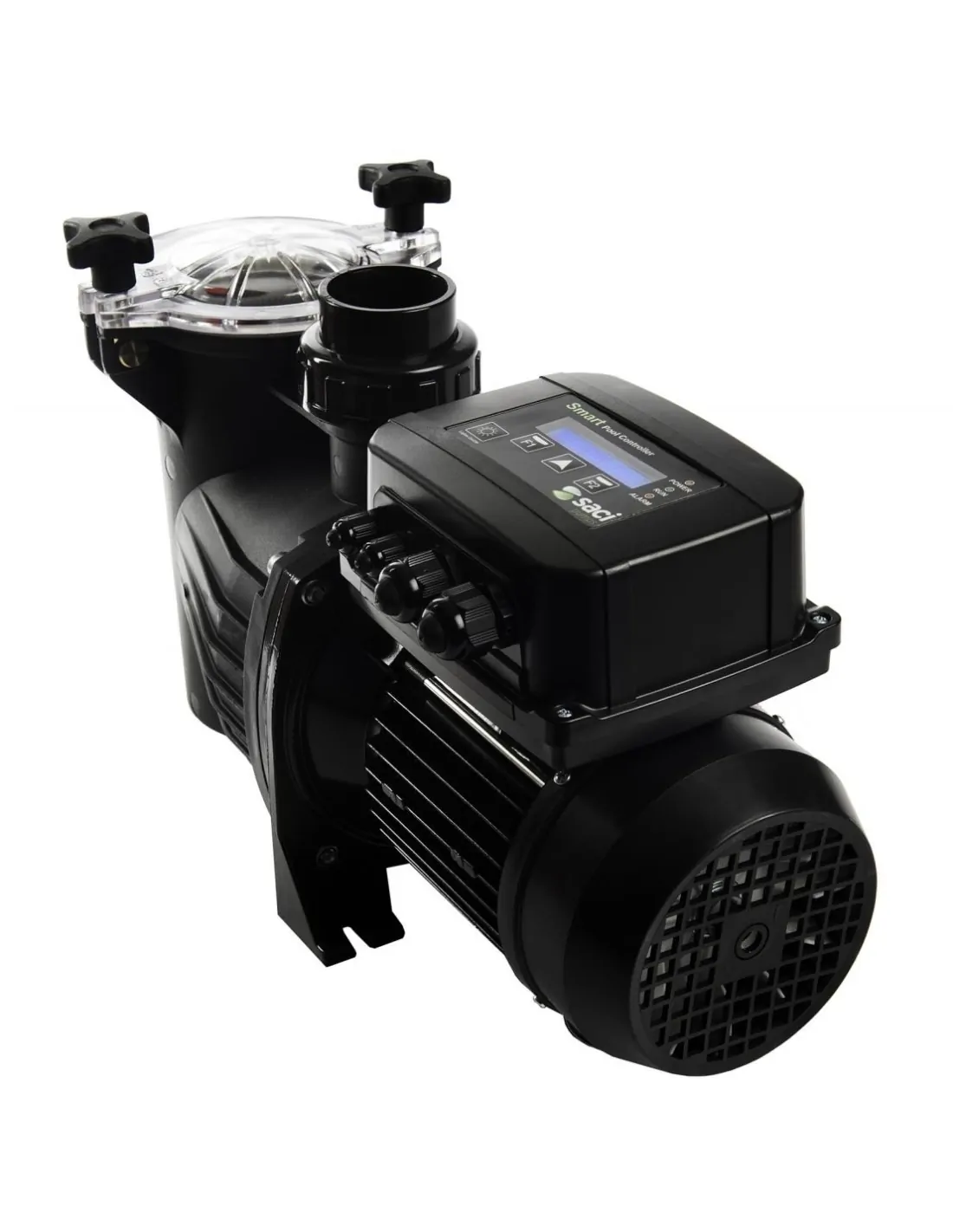

Saci Smart Optima 60 HZ pump

The new SMART Control electronic system applicable to the OPTIMA series is an integral control system for the installation.

By means of the digital electric panel that incorporates the pump, it allows an easy and intuitive installation and a complete control of the pool, since it incorporates the necessary protections for the pump and for the people, programmer clocks and inputs/outputs for the control and management of the lighting system, salt chlorinator, heat pump, temperature probe, etc...

The system replaces the traditional electrical panel, and incorporates some new capabilities. Below we can see some of its main features.

SACI SMART OPTIMA FEATURES

- Clock programmer of filtration cycle.

- Lighting cycle timer.

- Amperimetric control for overconsumption.

- Input for pump activation by heat pump.

- Anti-freezing control system through PT100 temperature probe.

- Output for pool lights control.

- Output for salt chlorinator / pump on indicator.

- Built-in audible alarm for failure warning.

- Control of lack of water / dry running.

- Manual light on button, with built-in countdown.

- Manual pump start button, with countdown.

- Total/partial operating hours totalizer.

- Fault log history.

- Sand filter and basket cleaning warnings.

- SKIMMING function for cleaning the water surface.

TECHNICAL FEATURES

- Pump body and diffuser in polypropylene resistant to pool chemicals and reinforced with fiberglass, guaranteeing excellent durability.

- Noryl turbine.

- Transparent polycarbonate cover with knob closure system.

- Mechanical seal in AISI-316, shaft in stainless steel AISI-316, screws in AISI-316 (allows working with sea water).

MOTOR

- Asynchronous motor, closed with external ventilation.

- IP-55 protection degree, at 2,850 r.p.m. and 60 Hz (50 Hz MODEL OPTION).

- Class F insulation.

- Motor bearings lubricated for life and selected to guarantee long life and quietness.

- MAXIMUM WATER TEMPERATURE: 40º C.
