Electric Heater Pahlen AQUA HL INCOLOGY

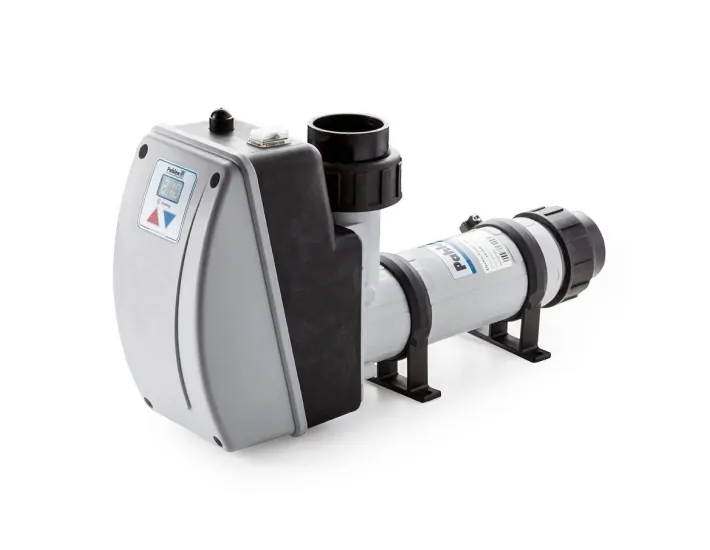

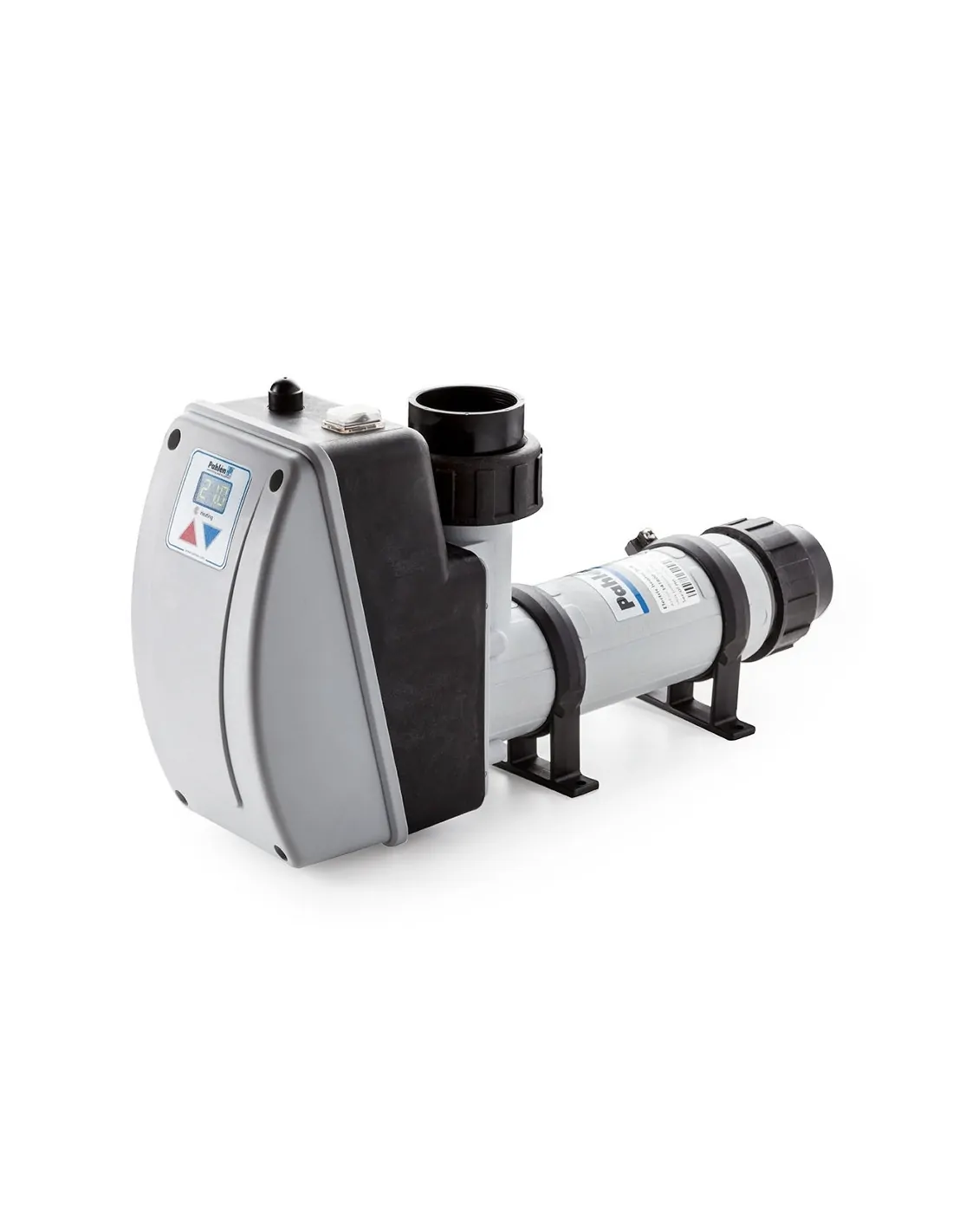

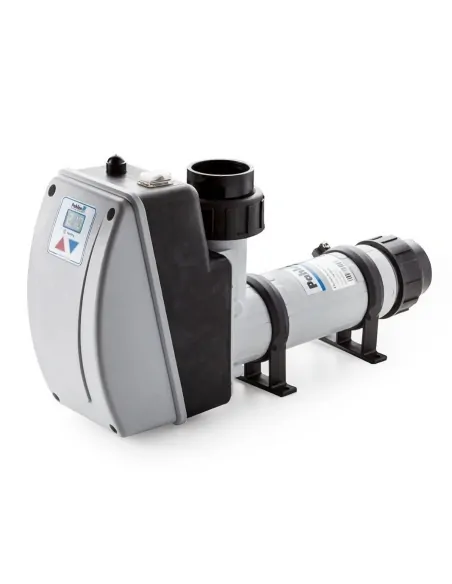

Information about the electric heater Aqua HL 3-15kW

Pahlén electric heaters with digital control.

The desired pool temperature can be easily set and the current pool temperature is shown on the LED display. In addition to an overheat protection and a flow switch, the heater has integrated contactors that simplify the connection of the heater.

The heating element is made of Incoloy 825 or ASTM grade 1 titanium and the heater housing is made of fiberglass-reinforced polypropylene. Aqua HL line heaters are available with outputs in sizes from 3-15kW up to 415V (230V single phase, 1 / 400V three phase) and are supplied with union couplings for connection to Ø 415 mm pipes.

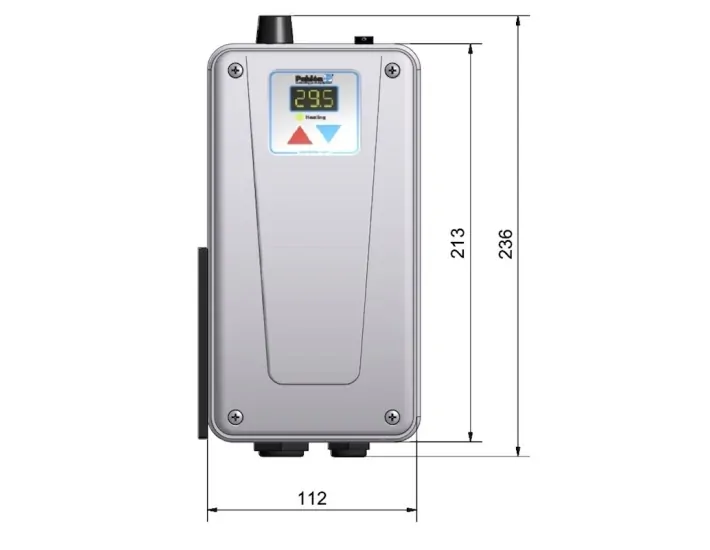

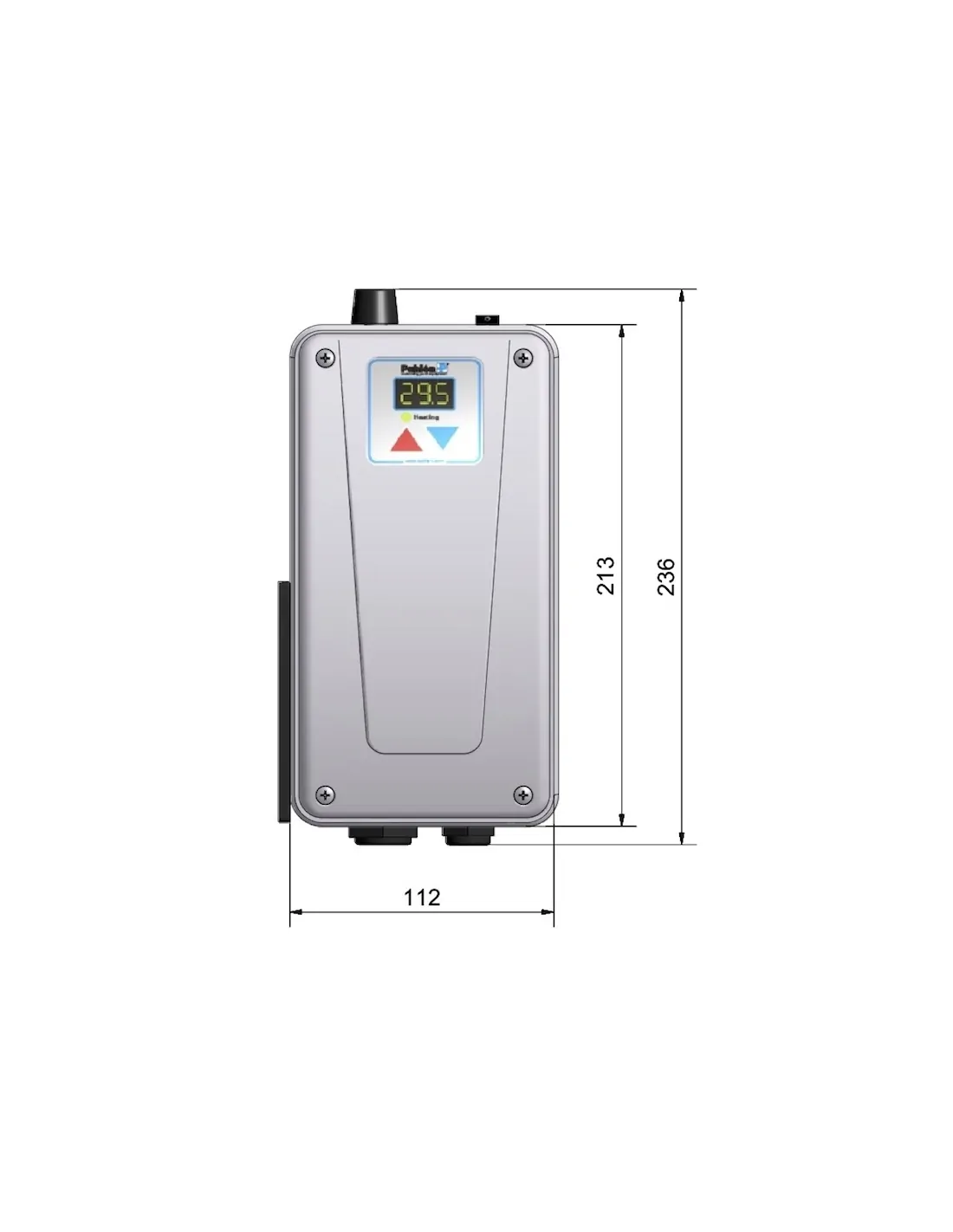

Exclusive electric heater with digital display. The pool temperature is easily adjusted through the digital LED display.

Minimum flow rate is 90 l / min. Max. pressure: 2 bar.

SPECIFICATIONS

- Capacity range 3-15kW

- Aqua HL comes with contactors and electronics

- Digital display and control

- Made of reinforced thermoplastic

- Horizontal installation

- Incoloy 825 or titanium heating elements

- Equipped with over-temperature limit control and flow switch

- Integrated dual contactors according to electrical safety standards

- Third party tested and certified

- Slip fittings for connection of Ø 50 mm pipes
