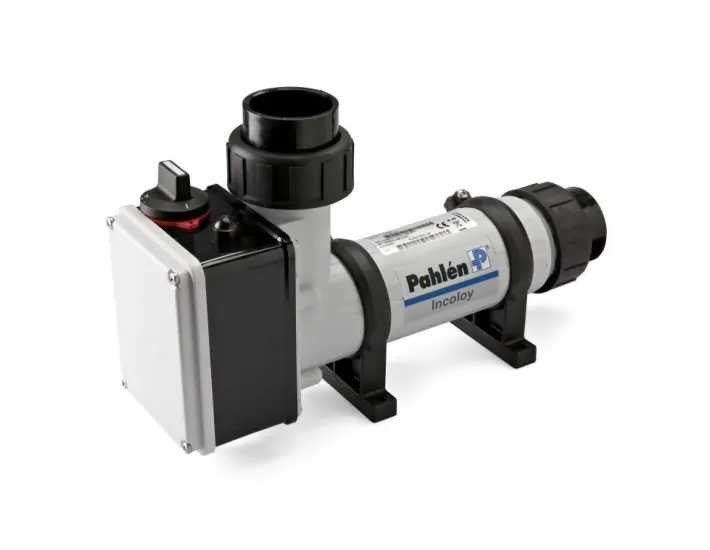

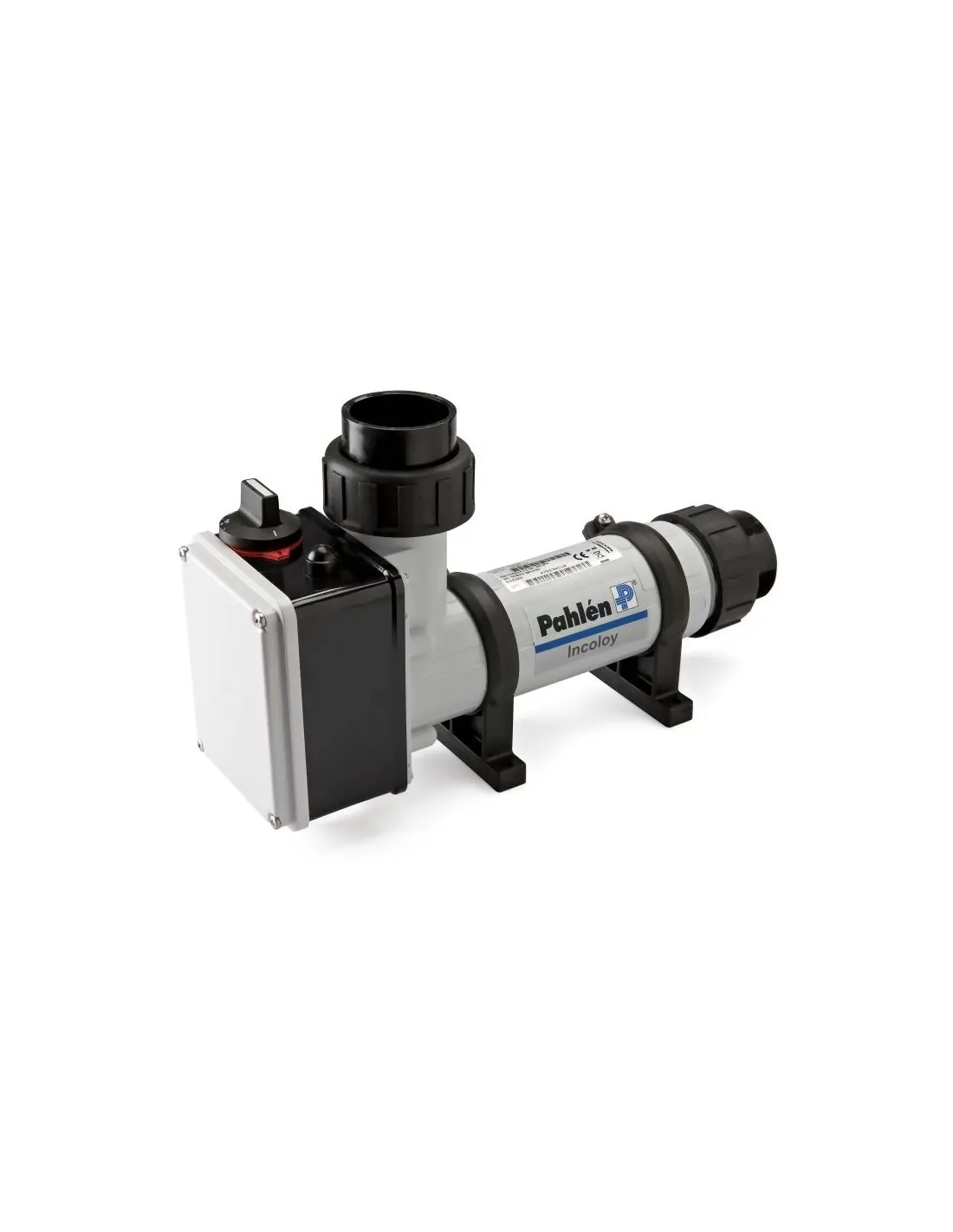

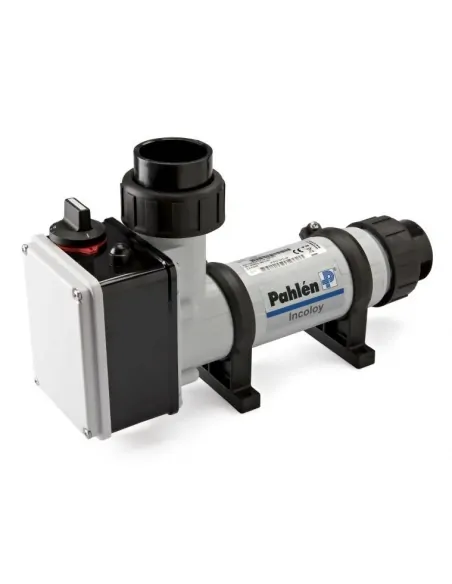

Electric pool heater of the brand Pahlen for swimming pools
Model AQUA COMPACT 3 KW
Made of thermoplastic for greater resistance.
Heating element made of Incoloy 825 or titanium for greater safety in installations with high risk of corrosion.
Suitable for private pools up to 100 m3
Electric pool heaters made of thermoplastic for greater resistance.
Heating element made of Incoloy 825 or titanium for safety in installations with high risk of corrosion, e.g. salt water pools. Supplied with a thermostat to adjust the pool temperature, as well as a flow switch and an overheat switch. Nominal output 3-18 kW.
Minimum flow rate 90 l / min. Max. pressure: 2.5 bar. Suitable for private pools up to 100 m3
Also available with pipe connections of 1 ½ "add a" A "after item no. or 1 ½ "threaded add a" B "after item no.
SPECIFICATIONS
- Fiberglass reinforced thermoplastic electrical heater
- Thermoplastic housing
- Horizontal installation, eliminates air pockets and damage to electric heating element
- Incoloy 825 or titanium heating elements
- Equipped with overheat cutoff and flow switch
- Sliding connections for connection of Ø 50 mm pipes
