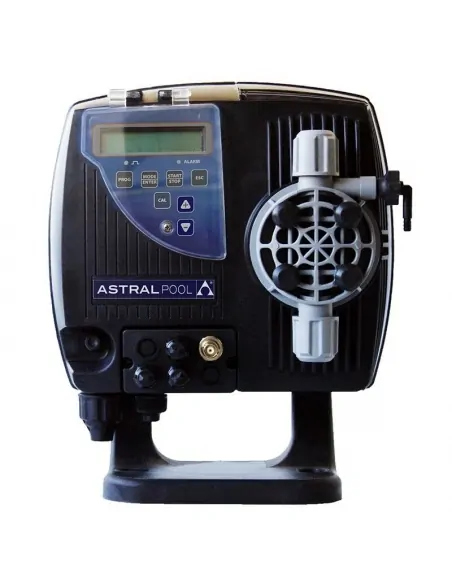

Optima Dosing Pump Type C. Redox/pH Control Of 10 Bar And 5 L/H And 5 Bar And 10 L/H

Dosing pump of the OPTIMA series with integrated pH or ORP control instrument.

Automatic calibration achieved by simply pressing a button and with the possibility to control the efficiency level of the sensor.

Optima diaphragm metering pump

The Optima Series, with its new power supply technology from 90Vac to 265Vac and 50-60Hz, guarantees unprecedented dosing accuracy and adaptability.

Integration of many more functions, thanks to the ease of programming, the alphanumeric display, the possibility of the multi-language programming menu and a new technology that allows to obtain a controllable flow rate and back pressure, makes it possible to cover different dosing needs with a single pump model, without losing dosing accuracy.

OPTIMA series dosing pump with integrated pH or Redox control instrument. Automatic calibration achieved by simply pressing a button and with the possibility of controlling the efficiency level of the sensor.

PUMP CHARACTERISTICS

- Power supply from 90 to 265 Vac 50/60 Hz.

- Manual temperature compensation for pH or optionally automatic by Pt100.

- Output 4...20mA for graphical recording or transmission of the measured value.

- Level alarm with pump shutdown or simple warning of lack of product through the alarm relay.

- Set point deviation alarm programmable over the entire measuring range.

- Delay time in dosing to prevent the dosing pump from injecting product in case of sensor malfunction.

- Limitation of the maximum flow rate of the dosing pump to avoid unwanted overdosing.

- Password protection of the programmed data.

- Possibility of alarm connection.
